A multiple piston spot welding machine is a type of spot welding equipment designed to perform multiple welds simultaneously or in rapid succession. This is achieved by using several pistons, each with its own electrode, arranged in a single unit to handle a variety of welding points on a workpiece without needing to reposition it. Such machines are ideal for high-volume production environments where efficiency, speed, and consistency are essential, as they can weld multiple spots at once, significantly reducing cycle time.

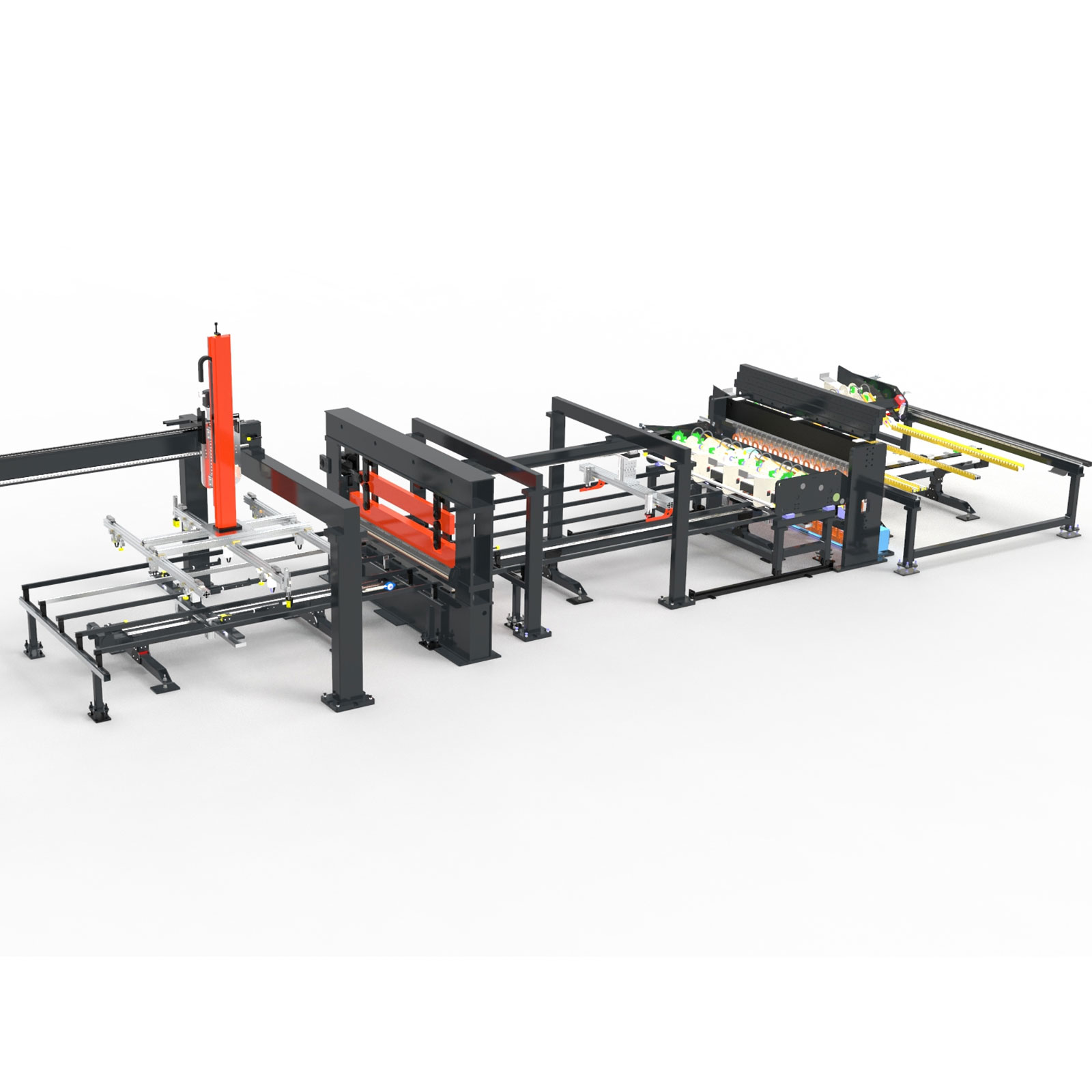

BPF120/ FULL AUTOMATIC 3D PANEL FENCE ALDE SPOT WELDING MACHINE
A multiple piston spot welding machine is a type of spot welding equipment designed to perform multiple welds simultaneously or in rapid succession. This is achieved by using several pistons, each with its own electrode, arranged in a single unit to handle a variety of welding points on a workpiece without needing to reposition it. Such machines are ideal for high-volume production environments where efficiency, speed, and consistency are essential, as they can weld multiple spots at once, significantly reducing cycle time.
| Rated Power | 6×150 KVA |
| Continuons Power | 105 KVA |
| Primar Voltage | 400 V |
| Frequency | 50-60 Hz |
| Secondery Voltage | 7 – 10 V |
| Fuse | 250 A |
| Secondery Short Circuit Current | 38 KA |
| Number Of Pistons And Electrodes | 26 – 51 |
| Horizontal Wire Range | Program Min. 15 mm |
| Elektrode Force | Max 360 Kg |
| Air Presure | 3 – 8 Bar |
| Stroke Per Minute | – |
| Cooling Water Ressure | 5 Bar |
| Flow Rate Of Cooling Water | 60 lt / dk. |
| Welding Capacity For Mid Steel | 8 mm + 8 mm |
| The Maximum Size Of The Grid Size | 2500 mm x (Option) |
