A resistance butt welding machine is a type of resistance welding equipment used to join two metal workpieces end-to-end, often used for welding rods, wires, or tubes. In this method, heat generated by electric resistance at the joint fuses the materials while applying axial force, forming a strong bond.

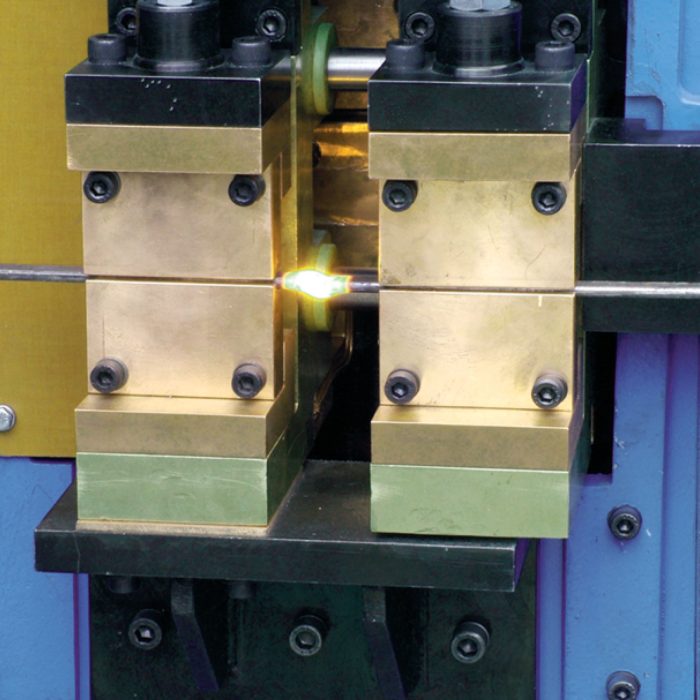

SWB060Y / BUTT WELDING MACHINE
A resistance butt welding machine is a type of resistance welding equipment used to join two metal workpieces end-to-end, often used for welding rods, wires, or tubes. In this method, heat generated by electric resistance at the joint fuses the materials while applying axial force, forming a strong bond.
| Rated Power | 60 KVA |
| Continuons Power | 44 KVA |
| Primar Voltage | 400 V |
| Frequency | 50-60 Hz |
| Secondery Voltage | 5,5 – 7,5 V |
| Fuse | 100 A |
| Secondery Short Circuit Current | 28 KA |
| Number of Stages | 1 |
| Stroke | 50 mm |
| Elektode Force | 100-440 Kg |
| Air Presure | 3 – 8 Bar |
| Stroke Per Minute | 40 |
| Cooling Water Ressure | 5 Bar |
| Flow Rate of Cooling Water | 6 lt / dk. |
| Welding Capacity For Mid Steel | 10 mm + 10 mm |
| Welding Capacity For Stainless Steel | 8 mm + 8 mm |
