A resistance butt welding machine is a type of resistance welding equipment used to join two metal workpieces end-to-end, often used for welding rods, wires, or tubes. In this method, heat generated by electric resistance at the joint fuses the materials while applying axial force, forming a strong bond.

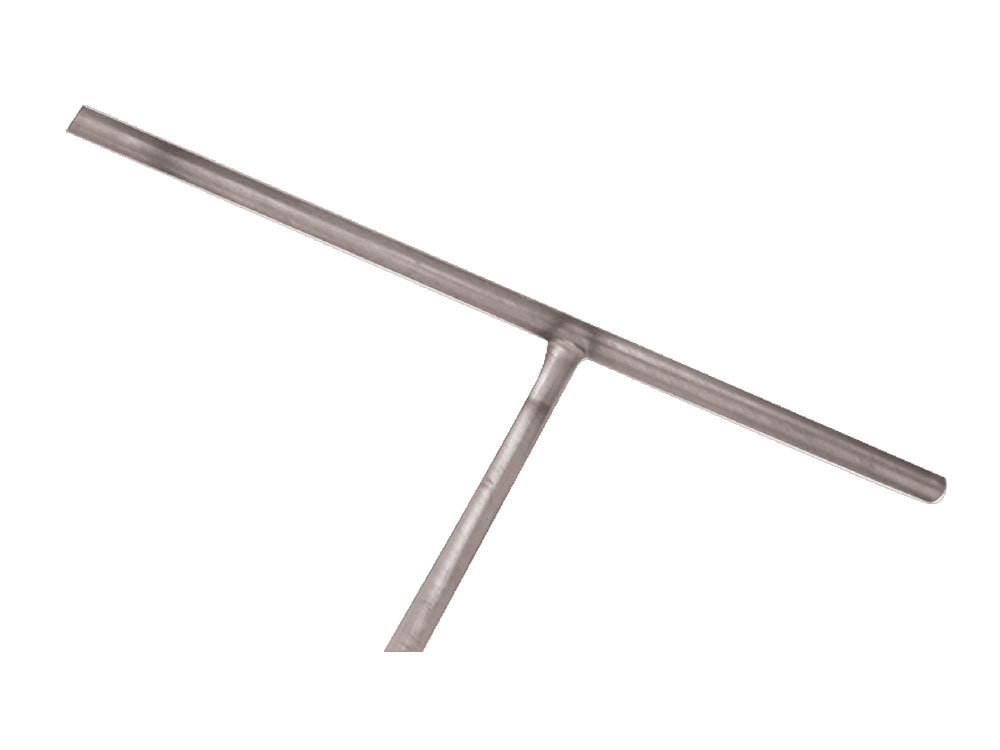

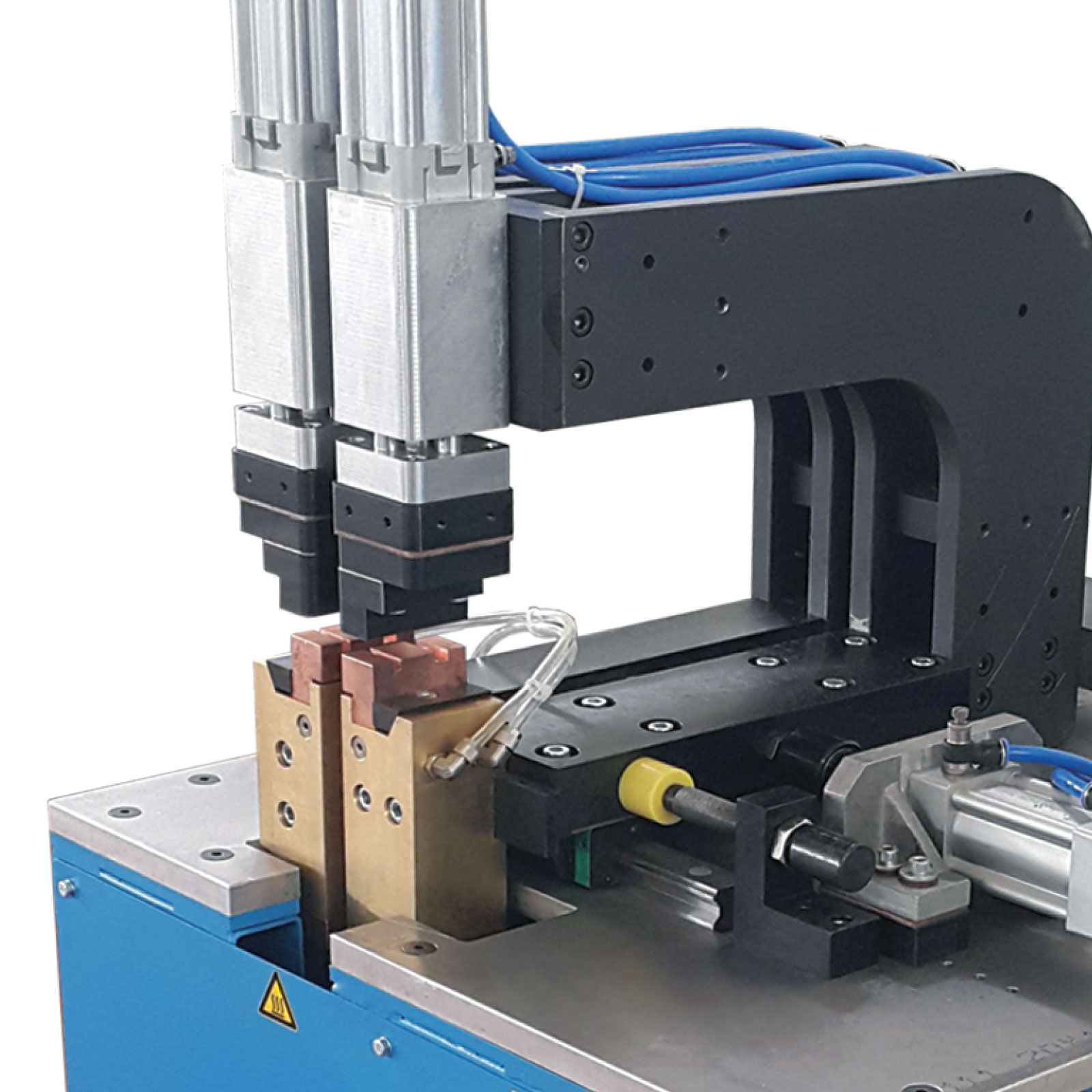

SWBT045T / BUTT WELDING MACHINE FOR -T- TYPE
A resistance butt welding machine is a type of resistance welding equipment used to join two metal workpieces end-to-end, often used for welding rods, wires, or tubes. In this method, heat generated by electric resistance at the joint fuses the materials while applying axial force, forming a strong bond.
| Rated Power | 45 KVA |
| Continuons Power | 30 KVA |
| Primar Voltage | 400 V |
| Frequency | 50-60 Hz |
| Secondery Voltage | 4,5 – 6 V |
| Fuse | 100 A |
| Secondery Short Circuit Current | 23 KA |
| Number of Stages | 1 |
| Stroke | 50 mm |
| Elektode Force | 50 – 280 Kg |
| Air Presure | 3 – 8 Bar |
| Stroke Per Minute | 40 |
| Cooling Water Ressure | 5 Bar |
| Flow Rate of Cooling Water | 6 lt / dk. |
| Welding Capacity For Mid Steel | 10 mm + 10 mm |
| Welding Capacity For Stainless Steel | 8 mm + 8 mm |
