A resistance seam welding machine is used to create continuous, leak-proof welds along the seams of overlapping or abutted metal sheets. This process is similar to spot welding, but instead of individual welds, it produces a series of overlapping weld nuggets, forming a continuous, airtight, and watertight joint. Seam welding is ideal for applications where a fluid-tight bond is needed, such as fuel tanks and food cans.

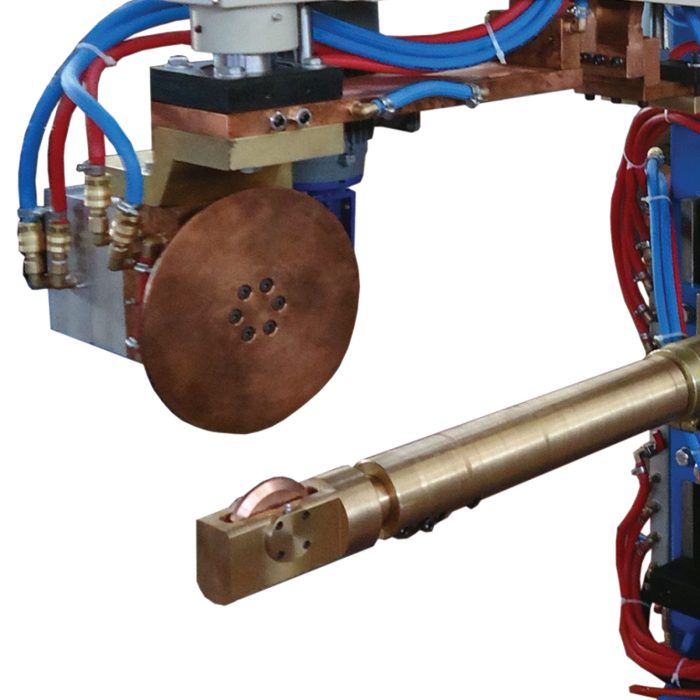

SWL120 / SEAM WELDING MACHINE FOR HORIZONTALLY USE
A resistance seam welding machine is used to create continuous, leak-proof welds along the seams of overlapping or abutted metal sheets. This process is similar to spot welding, but instead of individual welds, it produces a series of overlapping weld nuggets, forming a continuous, airtight, and watertight joint. Seam welding is ideal for applications where a fluid-tight bond is needed, such as fuel tanks and food cans.
| Rated Power | 120 KVA | |
| Continuons Power | 85 KVA | |
| Primar Voltage | 400 V | |
| Frequency | 50-60 Hz | |
| Secondery Voltage | 7 – 8,5 V | |
| Fuse | 250 A | |
| Secondery Short Circuit Current | 32 KA | |
| Number of Stages | 1 | |
| Stroke | 100 mm | |
| Elektode Force | 235-630 Kg | |
| Air Presure | 3 – 8 Bar | |
| Arm Lenght | 2,5 m | |
| Cooling Water Ressure | 5 Bar | |
| Flow Rate of Cooling Water | 6 lt / dk. | |
| Welding Capacity For Mid Steel | 3 mm + 3 mm | |
| Welding Capacity For Stainless Steel | 2 mm + 2 mm | |
