A projection-type spot welding machine is designed specifically for projection welding, which is a variation of resistance welding. In projection welding, metal sheets are joined using localized heat and pressure applied to specific contact points or projections on the work piece, rather than a continuous line or area. This method allows for more precise welds and is ideal for welding thicker materials or attaching components with small, raised projections (like bolts or nuts) to flat metal sheets.

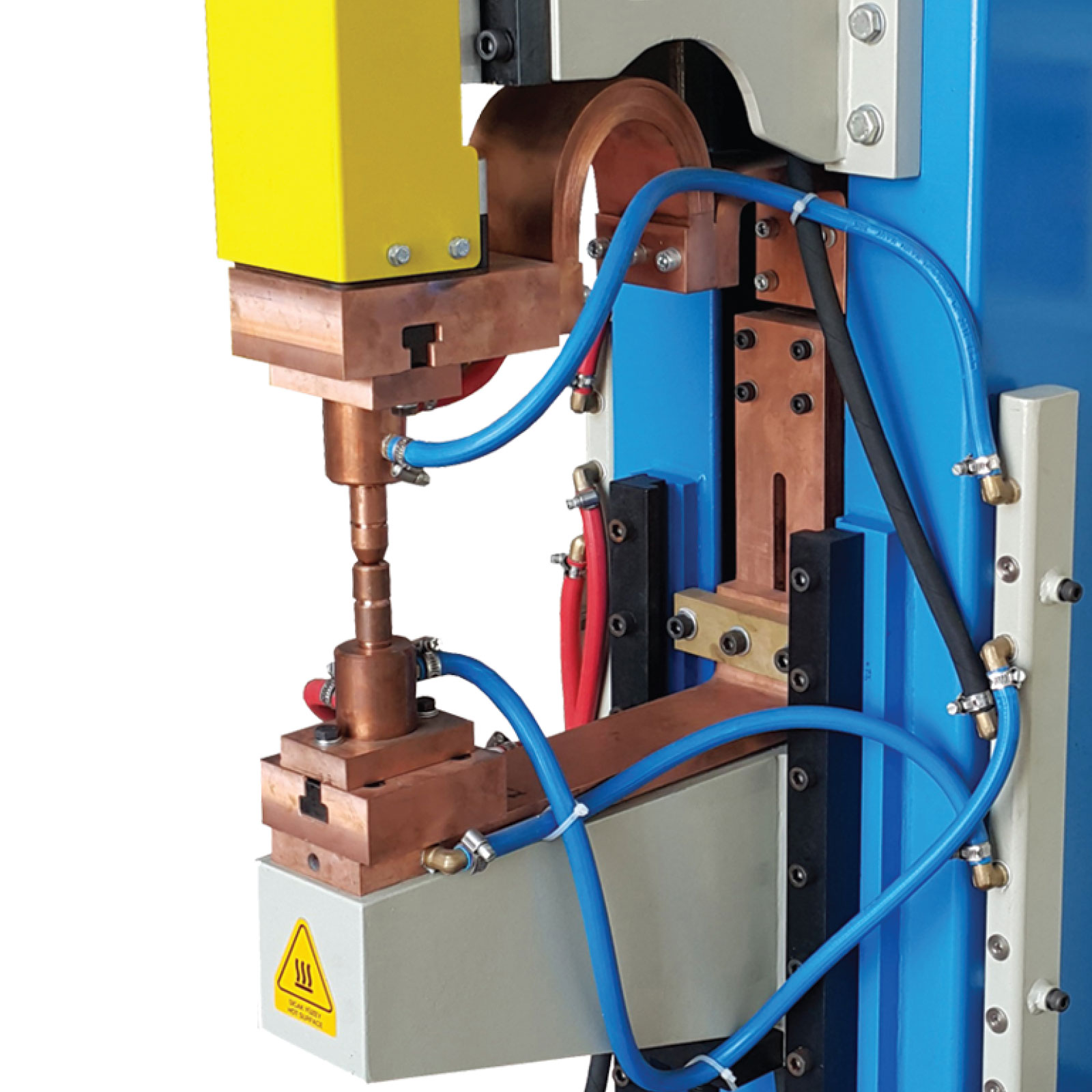

SWP060 / PROJECTION TYPE Alde SPOT WELDING MACHINE
A projection-type spot welding machine is designed specifically for projection welding, which is a variation of resistance welding. In projection welding, metal sheets are joined using localized heat and pressure applied to specific contact points or projections on the work piece, rather than a continuous line or area. This method allows for more precise welds and is ideal for welding thicker materials or attaching components with small, raised projections (like bolts or nuts) to flat metal sheets.
| Rated Power | 60 KVA |
| Primar Voltage | 400 V |
| Frequency | 50-60 Hz |
| Secondery Voltage | 5,5 – 7,5 V |
| Fuse | 100 A |
| Arm Lenght | 300-700 mm |
| Welding Capacity | 3 mm + 3 mm |
| Strok | 80 mm |
