| Model Features | CT300 | CT350 | CT400 | CT500 | CT600 | CT700 | CT800 |
| Cooling Capacity Kcal / h | 323.000 | 385.000 | 500.000 | 577.000 | 619.000 | 705.000 | 815.000 |
| Number of Compressors | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Compressor Type | Screw | Screw | Screw | Screw | Screw | Screw | Screw |
| Compressor Power kw | 78,8 | 91,2 | 119 | 138 | 147 | 168 | 192 |
| Power Drawn kw | 85 | 98 | 139 | 160 | 171 | 191,6 | 216 |
| EER EER | 4,40 | 4,45 | 4,25 | 4,20 | 4,21 | 4,28 | 4,39 |
| Number of Fans | 6 | 6 | 10 | 10 | 12 | 12 | 14 |
| Fan Diameter mm | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Pump Power hp | X | X | X | X | X | X | X |
| Tank Capacity LT | X | X | X | X | X | X | X |
| Dimensions Length mm | 4380 | 4380 | 7200 | 7200 | 8550 | 8550 | 9900 |
| Dimensions Width mm | 2445 | 2445 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Dimensions Height mm | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 | 2550 |
| Water Connections | 4 | 4 | 8 | 8 | 8 | 8 | 8 |
| Weight kg | 2100 | 2100 | 4000 | 4000 | 4400 | 4400 | 4800 |

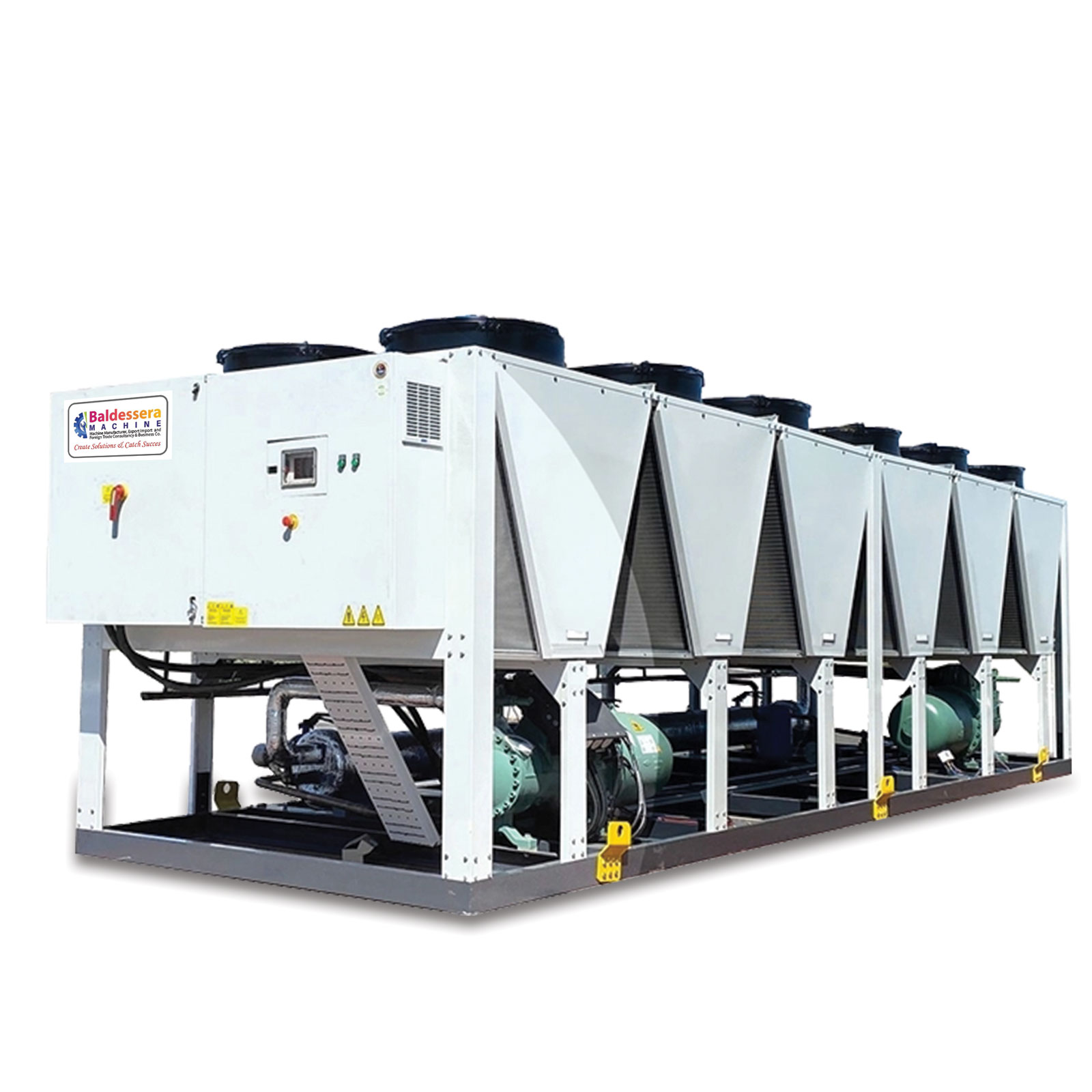

VOYAGER – ERA COOLING SYSTEM (CHILLER)
A water cooler chiller for a spot welding machine is essential for maintaining optimal operating temperatures during welding processes. These chillers help manage heat generated by the welding electrodes and the machine itself, preventing overheating and ensuring consistent performance.
